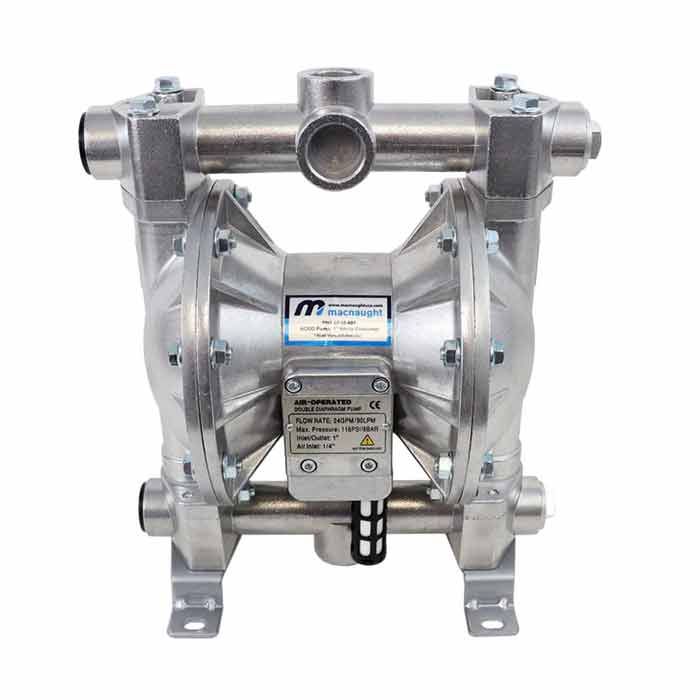

Macnaught DP10-001 M3 Double Diaphragm Pump, 1" NPT, 24 GPM, Air Operated

Macnaught DP10-001 M3 1" NPT Air Operated Double Diaphragm Pump, 24 GPM

Macnaught’s M3 DP10-001 air-operated diaphragm pump features a, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions. Best suited for economical, lighter-duty applications.

Suitable Fluids: Fuels, Oils, Waste Oils, Grease, General Automotive & Repair Fluids

Specifications:

• Flow Rate: 24 GPM / 91 LPM
• Pump Body: Aluminum
• Pump Diaphragm: Nitrile
• Inlet / Outlet: 1” NPT
• Max Particle Size: 1/8”
• Max Temp: 140℉ / 60C
• Air Inlet: ¼”
• Max: Inlet / Outlet Air Pressure: 115 PSI / 793 kPa
• Maximum Head: 164 FT
• Maximum Suction Height: 10 FT
