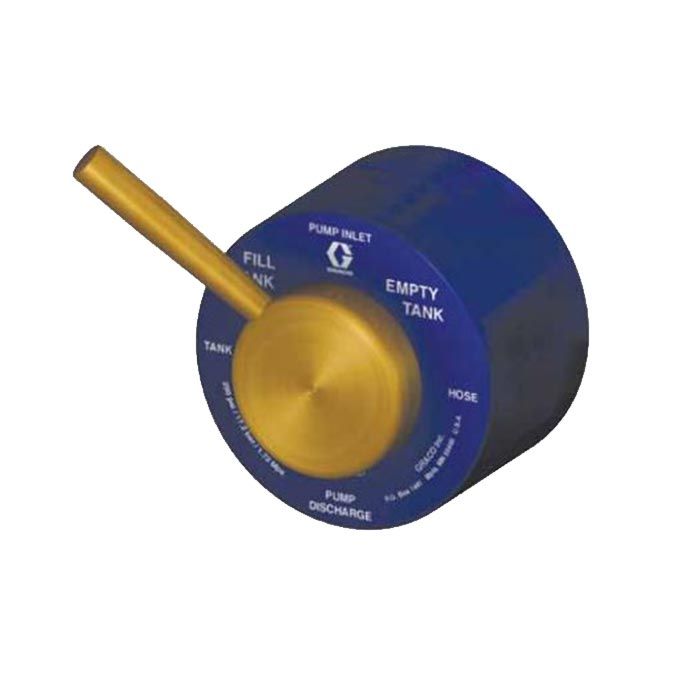

Graco 120581 4-Way Evacuation Valve, 1" NPT

Graco 120581 4-Way Evacuation Valve, 1" NPT. Directional Control Valve used to simplify the filling and emptying of tanks.
Features & Specs:
•  Simplifies installation by eliminating need for multiple valves
•  Unrestricted flow – no pressure or volume loss
•  Two position tank fill and emptying control
•  Tapered, self seating valve spool for superior sealing performance
•  Four (4) 5/16 inch threaded bolt holes for flush mount installation
Typical Applications:
•  Filling and emptying waste oil containers on lube trucks
•  Transfer fluids from bulk supply tanks to operational day tanks
•  Typical Fluids Handled: Petroleum and synthetic based oils, Fuels, Anti-Freeze, Windshield Wash Fluid
Technical Specs:
•  Wetted Parts: Aluminum Spool and Housing, Fluoroelastomer (O-rings)
•  Max Working Pressure: 200 PSI (13.8 bar, 1.38 MPa)
•  Dimensions: 4.75 in x 4.75 in (121 mm x 121 mm)
•  Threads: 1" NPT (f)
•  Mounting Hole Threads: 5/16 UNC (f)
