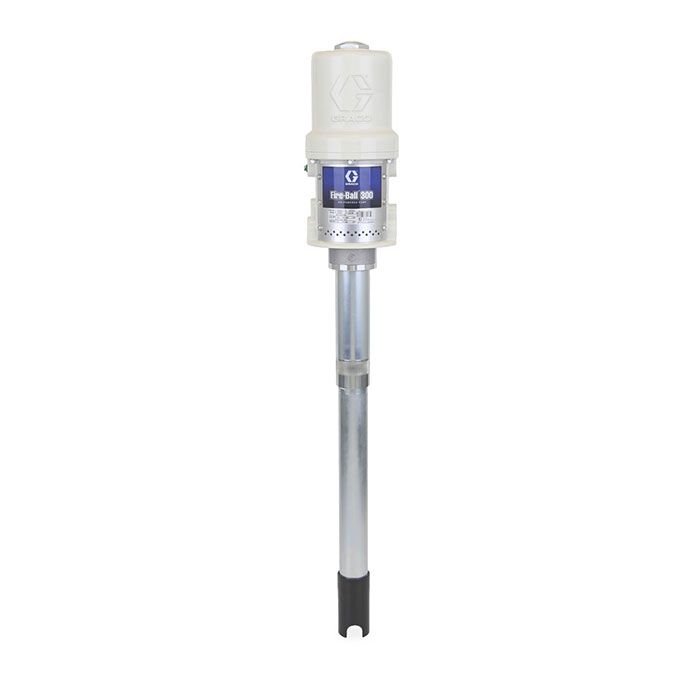

Graco 203872 Oil Pump, FireBall 300, 5:1, for 16 Gallon Drum, Cover Mounted

Graco 203872 FIreBall 300 Series 5:1 Oil Pump for 16 Gallon Drum, for cover mount.

Technical Specifications:

• Fluid Pressure Ratio: 5:1
• Air Inlet Size: 3/8 in. NPT(F) (9.525 mm)
• Air Motor Effective Diameter (in): 3 in (76.2 mm)
• Cycles Per Gallon: 30
• Fluid Inlet Size: 1-1/2 in. (38.1 mm)
• Fluid Outlet Size: 1/2 in. NPT(F) (12.7 mm)
• For Use With Petroleum- and synthetic-based oils (motor, gear and ATF)
• Maximum Air Consumption (SCFM): 25
• Maximum Air Inlet Pressure: 180 PSI (12.41 bar) (1241kPa)
• Maximum Continuous Cycle Rate (CPM): 70
• Maximum Working Pressure: 900 PSI (62 bar) (6200 kPa)
• Model: Fire-Ball
• Series: 300
• Sound Pressure Level (dB(A)): 77.8
• Maximum Working Pressure (MPa): 6.2
