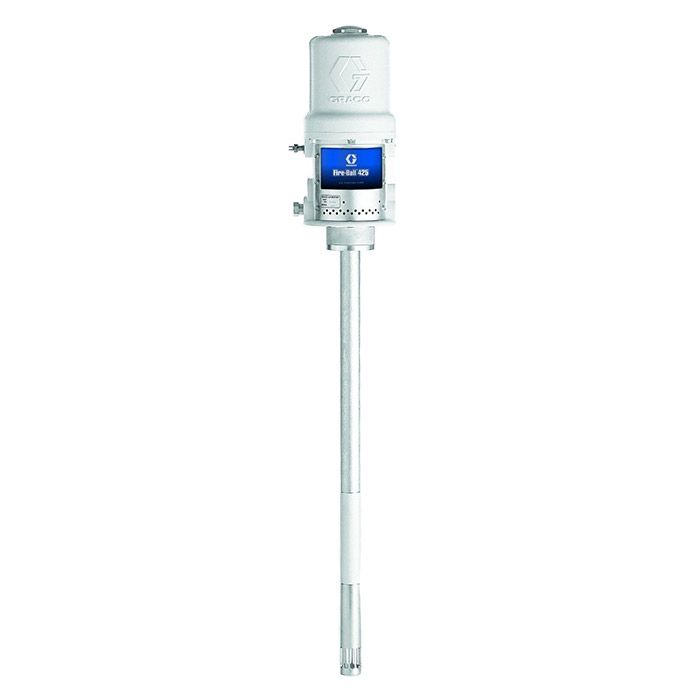

Graco 244635 Grease Pump Pkg,120 lb, 75:1, FireBall 425
Special Price
$7,810.00
Reg. Price:
$10,934.00
Available To Order
SKU
244635-GRA
Graco 244635 FireBall® 425 Grease Pump Package, for 120 lb Drum, 75:1 Ratio. Includes Grease Pump # 239729, Cover # 204574, Follow
Plate # 223344, Hose & Fitting Kit # 222076.
**1/2 in (12.7 mm) Air Regulator # 104266 and Air Gauge # 100960 Recommended. Must order separately.
Graco 244635 FireBall® 425 Grease Pump Package, for 120 lb Drum, 75:1 Ratio. Includes Grease Pump # 239729, Cover # 204574, Follow
Plate # 223344, Hose & Fitting Kit # 222076.
Features and Specs:
• 75:1 Ratio
• For 120 lb (16 Gal) (55 kg) Drum
• Continuos-Duty Flow Rate: 1.95 lb/min (.1.5 kg/min)
• Maximum Fluid Pressure: 7500 psi (517 bar)
• Air Motor Effective Diameter: 4.25 in (10.8 cm)
• Operating Range: 40-100 psi (2.8-7 bar)
• Approximate Air Use: 26 cfm @ 100 psi (7 bar)
• Wetted Materials: CS, Leather
• Air Inlet Port Size: 1/2 inch NPT(F)
• Material Inlet: Slotted
• Material Outlet: 3/8 in npt(f)
• Line Length : Up to 500 ft (76.2 m)
• Dispense Points: 4 or more
• Annual Usage: Up to 20,000 lb (9,072 kg)
• Typical Fluids Handled: Grease up to NLGI # 2
• Applications: Medium pressure, low to medium volume grease dispense, Automotive dealerships, Heavy-duty dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks, Mining, In-plant
