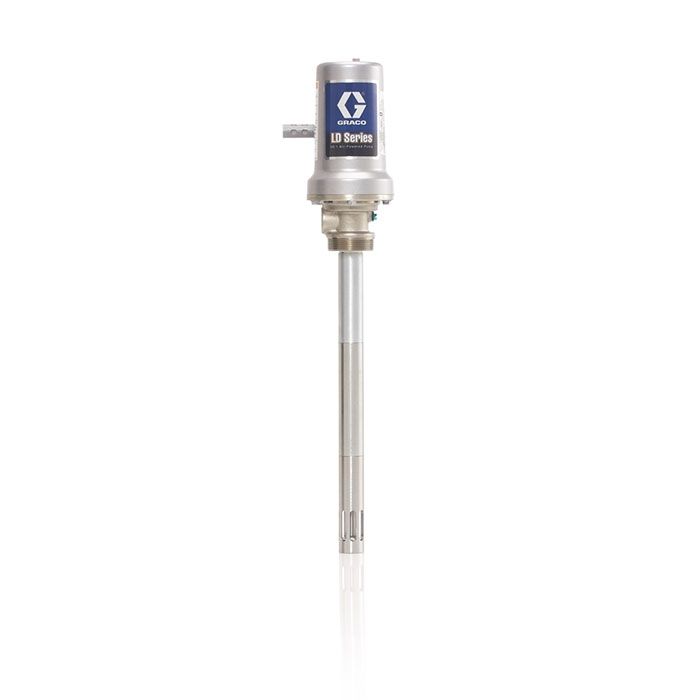

Graco 24G600 Grease Pump, 35 lb (16 kg), 50:1, LD Series

Graco 24G600 Grease Pump, 35 lb (16 kg), 50:1, LD Series

Features and Specs:

• For 35 lb (16 kg) Pail
• Max Fluid Working Pressure: 7500 PSI (517 bar, 51.7 MPa)
• Fluid Pressure Ratio: 50:1
• Air Operating Range: 20 to 150 PSI (1.37 to 10.3 bar)
• Recommended Air Pressure: < 125 PSI (8.6 bar)
• Max Recommended Pump Speed: 120 cycles per minute
• Cycles Per Gallon/pund (l/kg): 247 cycles per lb (103 cycles kg)
• Wetted Parts: Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
• Air Inlet: 1/4 in
• Fluit Inlet: Priming Piston
• Fluid Outlet: 1/4 in
• Free Flow: 5 lb/min
