Graco 24J036 Grease Pump Package, 120 lb, 50:1
Special Price
$1,400.00
Reg. Price:
$1,960.00
Available To Order
SKU
24J036-GRA
FREE SHIPPING IS NOT AVAILABLE FOR THIS ITEM. SHIPS IN 2 PACKAGES.

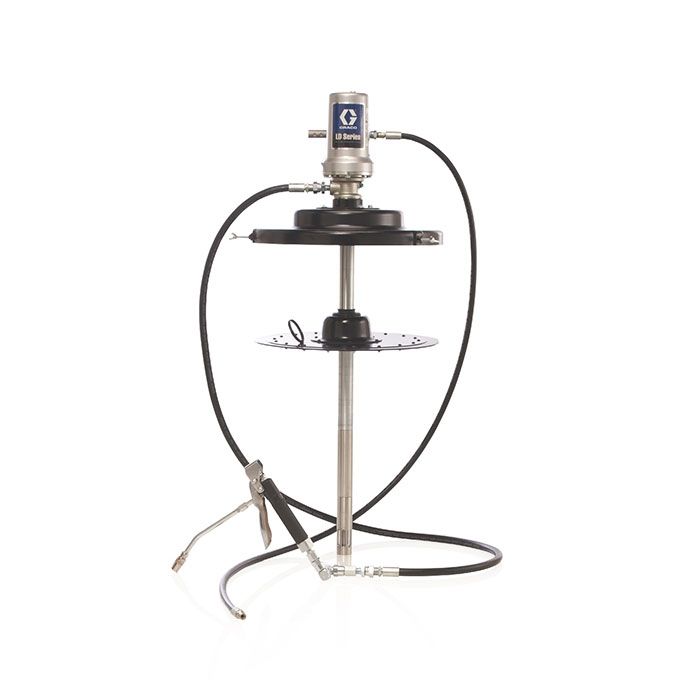

Graco 24J036 Grease Pump Package for 120 lb Drum, 50:1 Pumping Ratio. Includes Pump model (24G603), Follower Plate (24F902), drum cover (24F905), 6ft Grease Hose, 6ft Air Hose, Grease Valve (129581), and Z-Swivel (129591).
Graco 24J036 Grease Pump Package for 120 lb Drum, 50:1 Pumping Ratio.
Features and Specs:
• 50:1 Ratio
• For 120 lb (180 kg) Drum
• Approximate Free Flow Rate @ 100 psi: 4.5 lb/min (2 kg/min)
• Maximum Fluid Pressure: 7500 psi (517 bar)
• Air Motor Effective Diameter: 3 in (76.2 mm)
• Operating Range: 20-150 psi (1.37 - 10.3 bar)
• Approximate Air Use and Flow @ 100 PSI: 16 @ 1.7 lb/min (0.45 @ 0.77 kg/min)
• Wetted Materials: Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
• Air Inlet Port Size: 1/4 in npt(f)
• Material Inlet: Slotted
• Fluid Outlet: 1/4 in npt(f)
• Max Recommended Pump Speed: 120 cpm
• Annual Usage: Up to 7,000 lb (3,175 kg)
• Typical Fluids Handled: Grease up to NLGI # 2
• Applications: Automotive dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks.
Features and Specs:
• 50:1 Ratio
• For 120 lb (180 kg) Drum
• Approximate Free Flow Rate @ 100 psi: 4.5 lb/min (2 kg/min)
• Maximum Fluid Pressure: 7500 psi (517 bar)
• Air Motor Effective Diameter: 3 in (76.2 mm)
• Operating Range: 20-150 psi (1.37 - 10.3 bar)
• Approximate Air Use and Flow @ 100 PSI: 16 @ 1.7 lb/min (0.45 @ 0.77 kg/min)
• Wetted Materials: Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
• Air Inlet Port Size: 1/4 in npt(f)
• Material Inlet: Slotted
• Fluid Outlet: 1/4 in npt(f)
• Max Recommended Pump Speed: 120 cpm
• Annual Usage: Up to 7,000 lb (3,175 kg)
• Typical Fluids Handled: Grease up to NLGI # 2
• Applications: Automotive dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks.
