Macnaught R300S-02 Air Operated Oil Stub Pump, 3:1 Ratio
Special Price
$1,007.00
Reg. Price:
$1,409.80
Available To Order
SKU
R300S-02-MAC
FREE GROUND SHIPPING

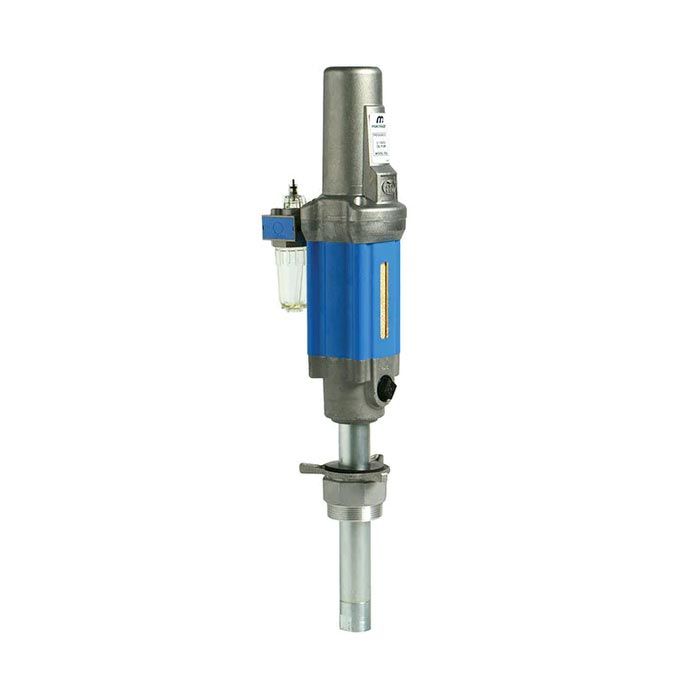

Macnaught 3:1 Air Operated Oil Pump - PN# R300S-02. Suitable for oils up to SAE140 viscosity and premix coolants. The Macnaught "R" Series range of pumps have been designed and manufactured using a strong metal construction, providing maximum performance and long service life. Macnaught 3:1 Air Operated Oil Pump - PN# R300S-02
Features:
The Macnaught ‘R’ Series range of pumps have been designed and manufactured using a strong metal construction, providing maximum performance and long service life. All the ‘R’ Series pumps are supplied complete with an inline air lubricator to help prevent premature wear. Suitable for oils up to SAE140 viscosity and premix coolants. The ideal choice for remote mount or integration into lubrication systems.
10 YEAR FACTORY WARRANTY!
SPECS:
- Model #: R300S-02
- Pumping Ratio: 3:1
- Output SAE 10: 6 GPM (23 LPM)
- Output SAE 15W-40: 5 GPM (19 LPM)
- Output SAE 90: 4.7 GPM (18 LPM)
- Maximum Static Head: 98 ft (30m)
- Airline Lubricator: Not included
- Pressure Relief Valve: √
- 2" Bung Adapter: √
- Fully Serviceable: √
- Compatible Fluids: Engine and gear oils up to SAE90, auto trans, hydraulic fluid.
- Min-Max Air Pressure: 60/150psi (400-1030kPa)
- Min Air Compressor: 6cfm/min (0.16m³)
- Air Inlet: 1/4: NPT(F)
- Pump Outlet: 3/4" NPT(F)
- Pump Inlet: 1" NPT(F)
