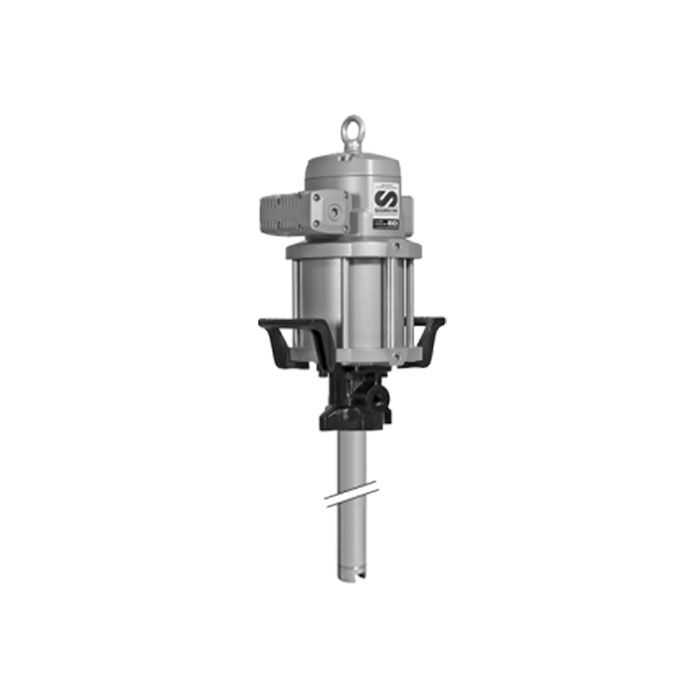

Samson 532821 Grease Pump for 120 lb. (16 Gal) Drum, 25:1

Samson 532821 PumpMaster 60 Grease Pump for 120 lb. (16 Gal) Drum, 25:1 Pumping Ratio, 8000 Max PSI.

Very high pressure and high volume delivery double acting pump for use in applications that require extra pressure and volume output where cold temperatures or low air pressure could limit pump performance.

• Pump Pressure Ratio: 25:1
• For grease up to NLGI No. 2
• Continuous Duty Flow Rate: 13.5 lb/min (6 kg/min)
• Max Free Flow Rate: 35.32 lb/min (2 kg/min)
• Air Pressure Operating Range: 20-100 PSI (1.5-7 bar)
• Maximum Outlet Pressure: 8000 PSI (350 bar)
• Air Motor Effective Diameter: 6" (150 mm)
• Air Motor Stroke: 4" (100 mm)
• Air Consumption: 35 scfm (1.000 NL/min)
• Air Inlet: 1/2" NPTF
• Fluid Outlet: 1/2" NPTF
• Wetted Materials: Cast Iron, Steel, Hard Chromed Steel, UHMWPR, NBR, PTFE
• Noise Level: 80 dB
• Simultaneous Dispense Points: 4+
• Max Line Length: 800' (250 m)
• Pump Description: Heavy Duty High Performance Pump
