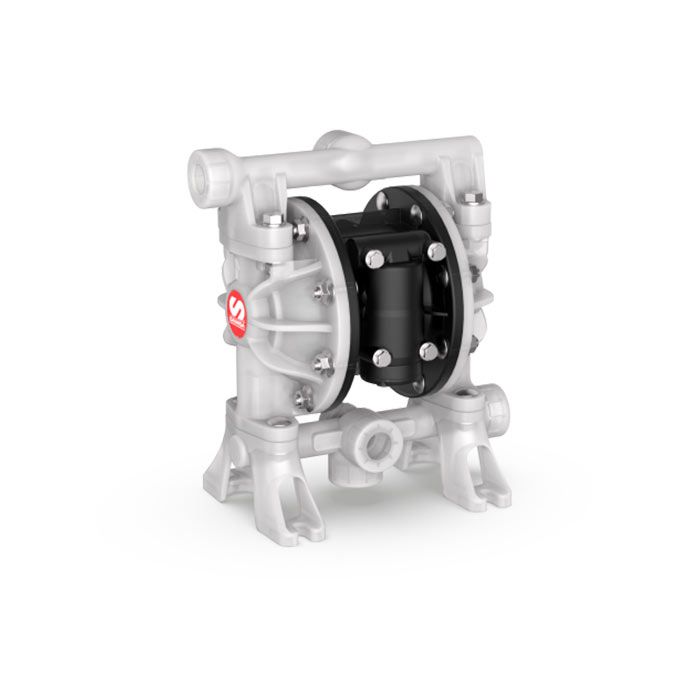

Samson 552181 1/2" Polyprop Diaphragm Pump, 13.5 GPM, 1:1 Ratio

Samson 552181 1/2" Polypropylene Double Diaphragm Pump, 13.5 GPM, 1:1 Ratio

Fluids Handled:

• DEF
• Windshield Wash Fluid
• Antifreeze and Antifreeze solutions

Features & Specifications:

• Frictionless pivoting air valves
• Bolted cover design
• Long life diaphragms
• Conventional flow design combined with unique pivoting air valve, fast action air valve for increased delivery and reliable performance.
• For small to medium volume transfer, de-watering and fluid evacuation
• Pump Ratio: 1:1
• Maximum free delivery: 13.5 gal/min (51 l/min)
• Maximum Dry suctio lift: 16' (5 m)
• Maximum Wet suction lift: 26' (8 m)
• Minimum air pressure: 20 psi (1.5 bar)
• Maximum air pressure: 100 psi (7 bar)
• Max size solid suspension: 3/32" (2.5 mm)
• Air inlet: 1/4” NPT(F)
• Fluid outlet: 1/2” NPT(F)
• Wetted materials: P=Polypropylene / M=Santoprene / A=Santoprene
