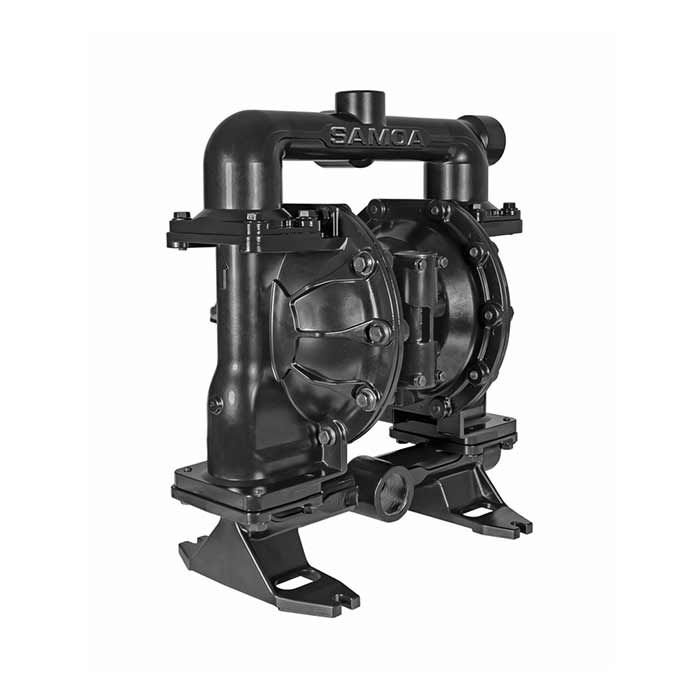

Samson 554061 1-1/2" Alum. Diaphragm Pump, 125 GPM, 1:1 Ratio

Samson 554061 1 1/2" Aluminum Double Diaphragm Pump, 125 GPM, 1:1 Ratio

Features & Specifications:

• Frictionless pivoting air valves
• Bolted cover design
• Long life diaphragms
• Conventional flow design combined with unique pivoting air valve, fast action air valve for increased delivery and reliable performance.
• For large volume transfer, de-watering and fluid evacuation
• Pump Ratio: 1:1
• Maximum free delivery: 125 gal/min (475 l/min)
• Maximum Dry suction lift: 19.6' (6 m)
• Maximum Wet suction lift: 29.5' (9 m)
• Minimum air pressure: 22 psi (1.5 bar)
• Maximum air pressure: 120 psi (8 bar)
• Max size solid suspension: 1/4” (6.4 mm)
• Air inlet: 1/2” NPT(F)
• Fluid outlet & inlet: 1-1/2” NPT(F) / 1-1/4" Vertical Oulet
• Wetted materials: H= Hytrel / C = Hytrel
