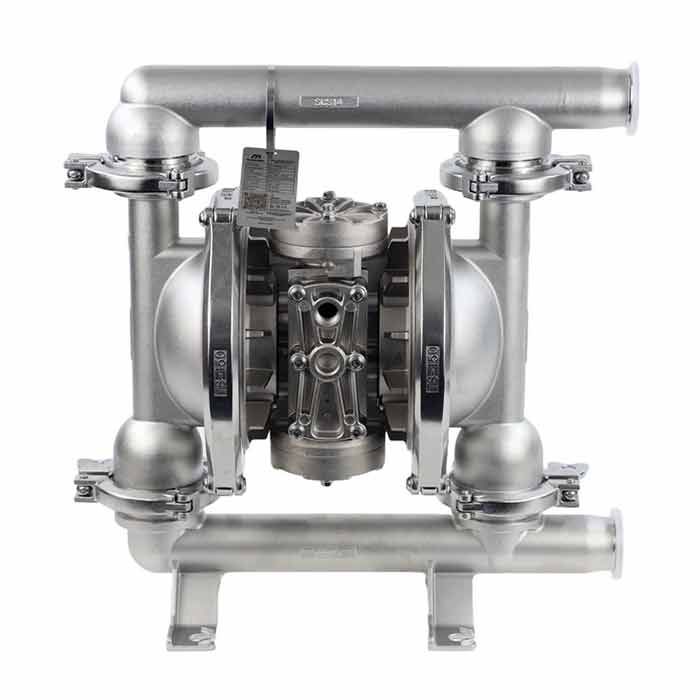

Macnaught M-DDP25SW-024 Double Diaphragm Pump, 1.5", 47.6 GPM, Air Operated, Max Flow

Macnaught M-DDP25SW-024 Max Flow FDA compliant AOD 1.5" Tri Clamp Air Operated Double Diaphragm Pump, 47.6 GPM, Stainless Steel/Teflon Dia

Experience the next level of efficient fluid transfer with our Max Flow Double Diaphragm Pump Series. Designed and manufactured in Japan, the Macnaught Max Flow range delivers industrial-grade process pumping solutions. This FDA Compliant Air Operated Double Diaphragm Pump operates at a 1:1 ratio with a maximum flow rate of 47 GPM, ensuring high-volume output with low air consumption. Includes a 5-Year Pump Body Warranty.

Typical Fluids Handled:

Food & Beverage, Pharmaceuticals, Cosmetics & Personal Care, Nutraceuticals, Chemicals, and Petrochemicals.

* * Please refer to Macnaught's Max Flow Series Diaphragm Pumps chemical handbook for fluid compatibility

Specifications:

• Max Flow Rate: 47.6 GPM
• Fluid Inlet/Outlet: ISO 1.5" Tri Clamp
• Air Inlet: 3/8" NPT(F)
• Operating Air Pressure: 30-100 PSI
• Max Solid State: 8 mm / 0.31 in.
• Suction Lift: 11.5ft(dry) & 26.2ft(wet)
• Liquid Temp (°F): 32°F - 212°F
• Noise Level (ISO 1996): 83 dB
• Diaphragm: WETTED PTFE - EPDM Backing
• Casing: Stainless Steel
• Max Air Consumption: 56.5 SCFM
• Max Discharge Pressure: 100 PSI
• Discharge Volume/Cycle: 0.16 Gallons

Features:

• Includes Air Inlet Ball Valve and Exhaust Muffler
• Handles Slurries: Transfers high-viscosity, abrasive slurries.
• Optimized Flow: Lighter spool ensures faster, smoother operations
• Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
• Dry-Run Safe: No overheating, runs without liquid.
• Deadhead Resistant: Withstands closed discharge without damage
• Self-Priming: Eliminates the need for manual priming.
• No inline lubrication required: Reduces maintenance and operational costs.
• Diaphragm: Nitrile Buna-N (NBR)
• Pump Wetted Parts: Glass-Filled Polypropylene(PPG),Nitrile Buna-N (NBR).
