Graco 246906 Oil Pump Pkg for 55 Gallon Drum, FireBall 225, 3:1

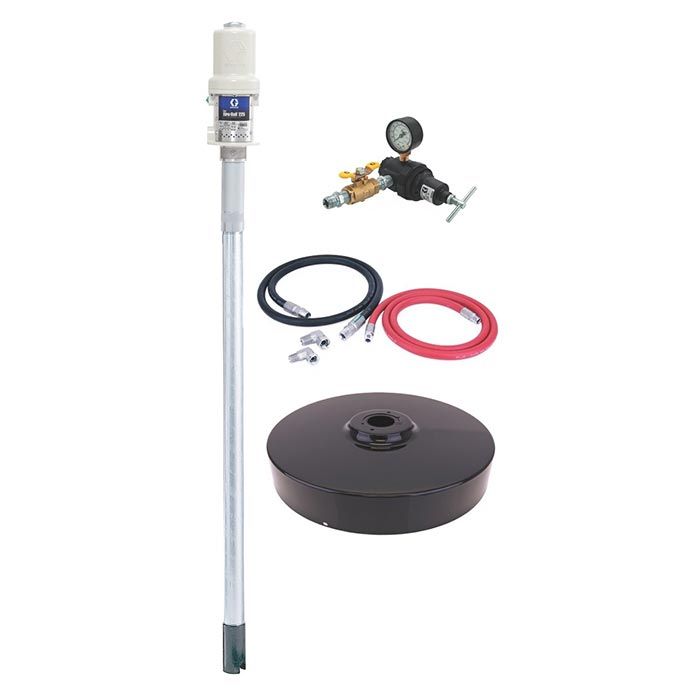

Graco 246906 Mini FireBall 225 3:1 Cover Mounted Oil Pump for 55 Gallon (400 lb.) Drum.  Includes oil pump, drum cover, air regulator with gauge, and hose installation kit.

Technical Specifications:

• Air Inlet Size: 3/8 in. (9.525 mm)
• Air Inlet Thread Gender: Female
• Air Motor Effective Diameter (in): 2.25
• Cycles Per Gallon: 43.5
• Fluid Inlet Size: 1-1/2 in. (38.1 mm)
• Fluid Inlet Thread Gender: Female
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• For Use With Petroleum- and synthetic-based oils (motor, gear and ATF)
• Includes: oil pump 248097, drum cover 200326, air regulator with gauge 17C270, and dispense/hose fitting kit 222063.
• Maximum Air Consumption (SCFM): 20
• Maximum Air Inlet Pressure: 180 PSI (12.41 bar) (1241kPa)
• Maximum Continuous Cycle Rate (CPM): 100
• Maximum Working Pressure: 540 PSI (37 bar) (3700 kPa)
• Model: Mini Fire-Ball
• Series: 225
• Sound Pressure Level (dB(A)): 77.8
• Maximum Working Pressure (MPa): 3.7
