Macnaught T312-02 Air Operated Oil Pump, 3:1 Ratio

Special Price $534.17 Reg. Price: $747.84
Available To Order
SKU
T312-02-MAC
FREE GROUND SHIPPING
Macnaught 3:1 Air Operated Oil Pump - PN# T312-02. The ideal choice for small workshop or service truck applications. The "T" Series range of pumps have been designed with a non-corrosive air motor that does not require any oil lubrication, the pumps have a very low air consumption and the noise levels during operation are very low.

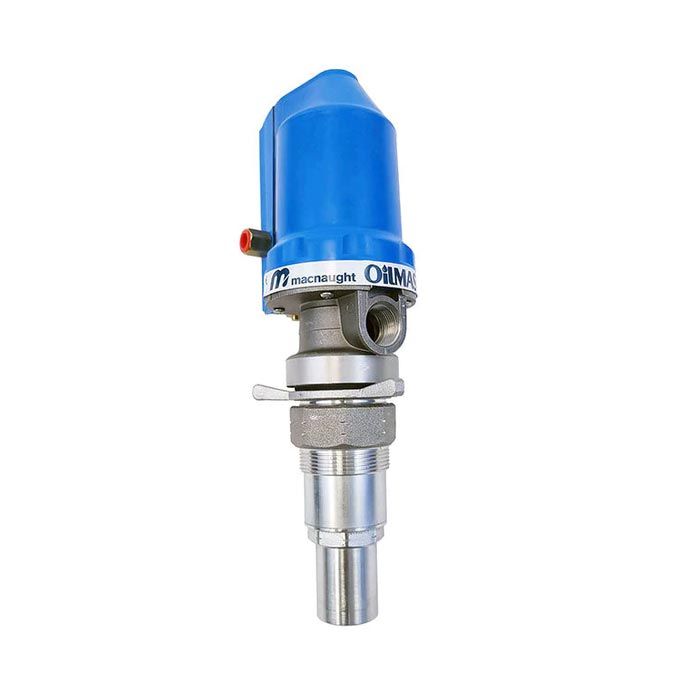

Macnaught 3:1 Air Operated Oil Pump - PN# T312-02

Features:

The Macnaught T Series 3:1 range of Air Operated Oil Pumps are high quality, economically priced oil pumps. The ideal choice for small workshop or service truck applications. The ‘T’ Series range of pumps have been designed with a non-corrosive air motor that does not require any oil lubrication, the pumps have a very low air consumption and the noise levels during operation are very low. The “T” series design includes a built in pressure relief valve to protect against pressure build up caused by thermal expansion suitable for oils and premix coolants up to SAE140 viscosity.

10 YEAR FACTORY WARRANTY!

SPECS:

  • Model #: T312-02
  • Pumping Ratio: 3:1
  • Output SAE 10: 4 GPM
  • Output SAE 15W-40: 3.5 GPM
  • Output SAE 90: 3.2 GPM
  • Maximum Static Head: 90 ft (27.4m)
  • Pressure Relief Valve: √
  • 2" Bung Adapter: √
  • Fully Serviceable: √
  • Compatible Fluids: Engine and gear oils up to SAE90, auto trans, hydraulic fluid and anti-freeze / anti-boil.
  • Min-Max Air Pressure: 60/150psi (400-1030kPa)
  • Min Air Compressor: 5cfm/min (0.15m³)
  • Air Inlet: 1/4: NPT(F)
  • Pump Outlet: 3/4" NPT(F)
  • Pump Inlet: 1" NPT(F)
More Information
Manufacturer Macnaught USA
SKU T312-02-MAC
Part Number T312-02
Condition New
Type of Product Oil Pump
For Use With Oil
Ratio 3:1
