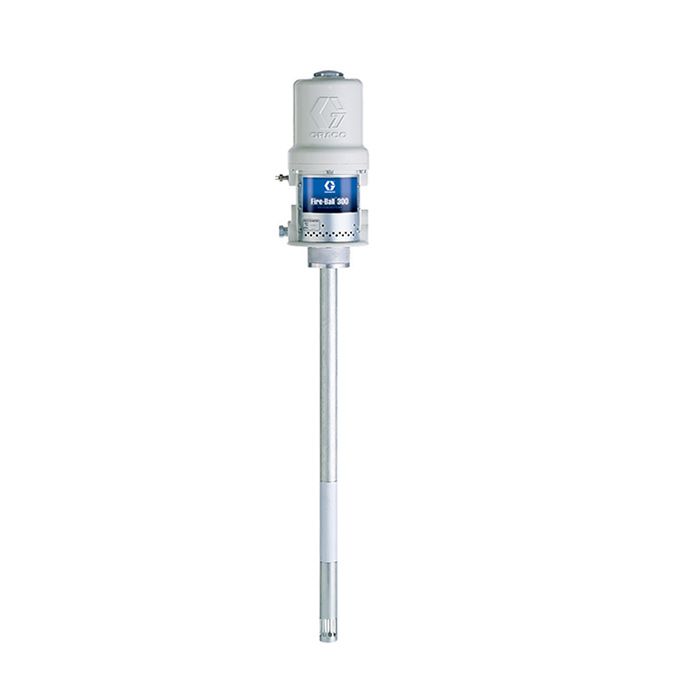

Graco 239887 Fire-Ball® 300 Grease Pump, 120 lb, 50:1
Special Price
$1,580.00
Reg. Price:
$2,212.00
Available To Order
SKU
239887-GRA
Free Ground Shipping!
Graco 239887 Fire-Ball® 300 Grease Pump, 120 lb, 50:1Graco 239887 Fire-Ball® 300 Grease Pump, 120 lb, 50:1
Features and Specs:
• 50:1 Ratio
• For 120 lb (55 kg) Drum
• Continuos-Duty Flow Rate: 1.19lb/min (.54 kg/min)
• Maximum Fluid Pressure: 8400 psi (580 bar)
• Air Motor Effective Diameter: 3 in (76.2 cm)
• Operating Range: 30-140 psi (3.0-9.7 bar)
• Approximate Air Use: 22.8 cfm @ 100 psi (7 bar)
• Wetted Materials: CS, Delrin®, Buna-N, Polyurethene
• Air Inlet Port Size: 3/8 in npt(f)
• Material Inlet: Slotted
• Material Outlet: 1/4 in npt(f)
• Line Length : Up to 250 ft (76.2 m)
• Dispense Points: 1 to 2
• Annual Usage: Up to 10,000 lb (4,535 kg)
• Typical Fluids Handled: Grease up to NLGI # 2
• Applications: Medium pressure, low to medium volume grease dispense, Automotive dealerships, Heavy-duty dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks, Mining, In-plant
Features and Specs:
• 50:1 Ratio
• For 120 lb (55 kg) Drum
• Continuos-Duty Flow Rate: 1.19lb/min (.54 kg/min)
• Maximum Fluid Pressure: 8400 psi (580 bar)
• Air Motor Effective Diameter: 3 in (76.2 cm)
• Operating Range: 30-140 psi (3.0-9.7 bar)
• Approximate Air Use: 22.8 cfm @ 100 psi (7 bar)
• Wetted Materials: CS, Delrin®, Buna-N, Polyurethene
• Air Inlet Port Size: 3/8 in npt(f)
• Material Inlet: Slotted
• Material Outlet: 1/4 in npt(f)
• Line Length : Up to 250 ft (76.2 m)
• Dispense Points: 1 to 2
• Annual Usage: Up to 10,000 lb (4,535 kg)
• Typical Fluids Handled: Grease up to NLGI # 2
• Applications: Medium pressure, low to medium volume grease dispense, Automotive dealerships, Heavy-duty dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks, Mining, In-plant
| Manufacturer | Graco |
|---|---|
| Fits Drum/Pail Size | 120 lb (16 gallon) |
| Model Number | 239887 |
| SKU | 239887-GRA |
| Part Number | 239887 |
| Condition | New |
| Type of Product | Grease Pump |
| For Use With | Grease |
| Air Motor Effective Dia. | 3 in (76.2 cm) |
| Ratio | 50:1 |
| Environment Application | Lubricant transfer, automotive dealerships, heavy duty dealerships, fast lube centers, fleet service facilities, service shops, lube trucks, mining, and more. |
